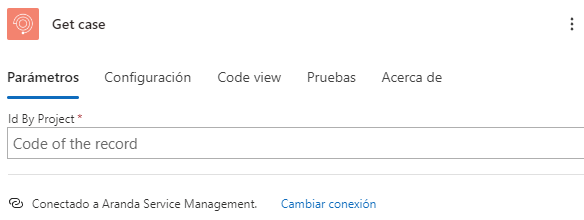

To get the case details using the connector Aranda Service Management Consider the following steps:

1. Get the Id By Project (enter the ASMS environment to get the case ID).

2. Select the function Get case

3. Enter the required value:

Id By Project

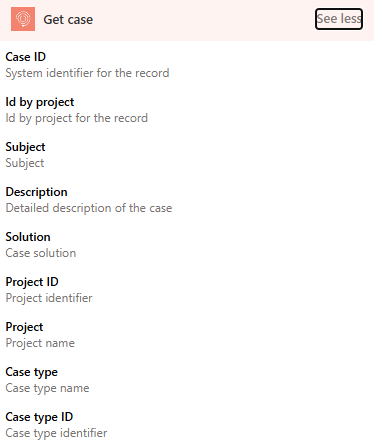

You will get the following answers:

Name	Identifier	Guy	Description
Additional Fields	additionalFields	Array	Additional case fields, depending on the retrieved case
Attachments	attachments	Array	Attachments to the case
Applicant ID	applicantId	Integer	Applicant Identifier
Author ID	authorId	Integer	Author identifier
Author	authorName	String	Author name
Id by project	idByProject	String	Case Project Identifier
Case ID	Id	Integer	Case Identifier
Case Type ID	itemTypeId	Integer	Case Type Identifier
Case Type	itemTypeName	String	Case Type Name
Category ID	categoryId	Integer	Category identifier
Category	categoryName	String	Category Name
CI ID	CiId	Integer	Configuration item identifier
CI	ciName	String	Configuration item name
Client ID	customerId	Integer	Customer ID
Client	customerName	String	Client Name
Closed Date	closedDate	String	Closing date
Closed	isClosed	Boolean	Closing
Company ID	companyId	Integer	Company Identifier
Company	companyName	String	Company Name
Costs	Cost	number	Costs
Description	Description	String	Case description
Estimated Cost	estimatedCost	number	Estimated costs
Estimated Date	estimatedDate	String	Estimated Date
Final date	finalDate	String	End date (available for Task cases)
Group ID	groupId	Integer	Responsible Group Identifier
Group	groupName	String	Name of the responsible group
Impact ID	impactId	Integer	Impact Identifier
Impact	impactName	String	Impact Name
Interface ID	interfaceId	String	Interface ID
Model ID	modelId	Integer	Model identifier
Model	modelName	String	Model Name
WAVE ID	HelloId	Integer	OLA Identifier
WAVE	olaName	String	Name OLA
Organizational Area ID	unitId	Integer	Organizational Area Identifier
Organizational Area	unitName	String	Name of the organizational area
Price	Price	number	Price
Priority ID	priorityId	Integer	Priority identifier
Priority	priorityName	String	Priority Name
Progress	currentProgress	Integer	Progress
Project ID	projectId	Integer	Project Identifier
Project	projectName	String	Project Name
Provider ID	providerId	Integer	Provider Identifier
Provider	providerName	String	Provider Name
Real Cost	realCost	number	Actual Cost
Real Date	realDate	String	Actual Date
Reason ID	reasonId	Integer	Change reason identifier
Reason	reasonName	String	Change Reason Name
Registry Date	openedDate	String	Registration Date
Registry Type ID	registryTypeId	Integer	Record Type Identifier
Registry Type	registryTypeName	String	Name of the record type
Responsible ID	responsibleId	Integer	Identifier of the controller
Responsible	responsibleName	String	Name of the person in charge
Risk ID	riskId	Integer	Risk identifier
Risk	riskName	String	Risk Name
Service ID	serviceId	Integer	Service Identifier
Service	serviceName	String	Service Name
SLA ID	SlaId	Integer	SLA Identifier
SLA	SlaName	String	SLA Name
Solution	commentary	String	Case Solution
Status ID	stateId	Integer	State ID
Status	stateName	String	State Name
Subject	subject	String	Subject of the case
UC ID	UCID	Integer	UC Identifier
UC	ucName	String	UC Name
Urgency ID	urgencyId	Integer	Urgency identifier
Urgency	urgencyName	String	Name of the emergency

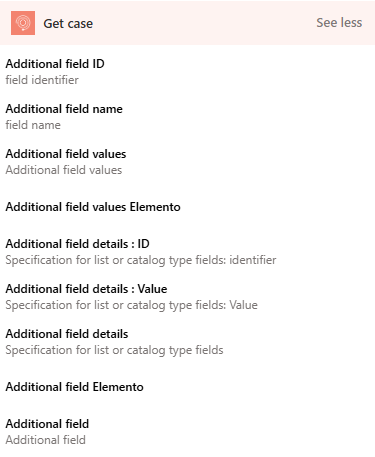

Additional Fields

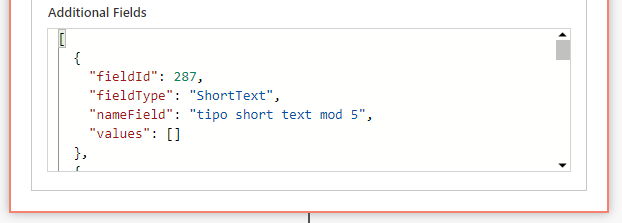

For the additional fields, a JSON is presented with the following structure:

{
    "additionalFields": [
        {
            "fieldId": 0,
            "fieldType": "",
            "nameField": "",
            "values": [
               ""
            ],
            "valueDetails":{
                "id": 0,
                "value": ""
            }
        }
    ]
}

Where:

-fieldId: Id of the additional field.
-fieldType: Additional field type.
-nameField: Name of the additional field.
-Values: Additional field value, the values it returns are similar to those entered when a record is created or updated, this value depends on the type of field, for more information see: Additional fields
-valueDetails: Corresponds to the detail of the list or catalog type fields:

Id: Corresponds to the system ID for the catalog value.
value: Corresponds to the name or label of the catalog value.

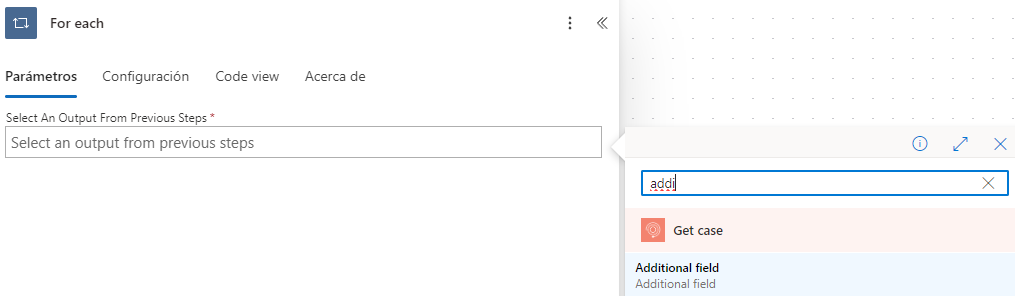

To operate the connector you can make use of the properties shown below:

Using the integrated action:

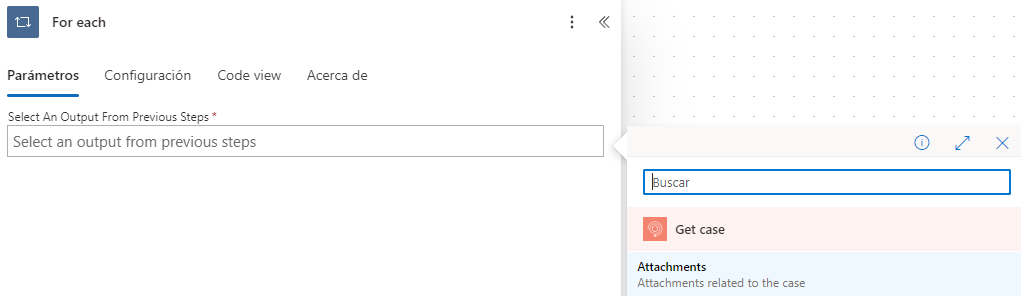

Attachments

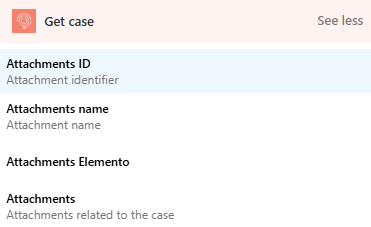

For attachments, a JSON is presented with the following structure:

{
    "attachments": [
        {
            "id": 0,
            "name": "",
        }
    ]
}

Where:

-Id: Corresponds to the system ID for the attachment.
-name: Corresponds to the name of the attachment.

To operate the connector you can make use of the properties shown below:

Using the integrated action:
