In the process of configuring the mail server for OAuth authentication, the authorization token is obtained automatically in the different Aranda applications. However, manual token generation will also be available for authentication issues.
Manual Token Configuration
1. To generate the manual token you must enter the Postman application.

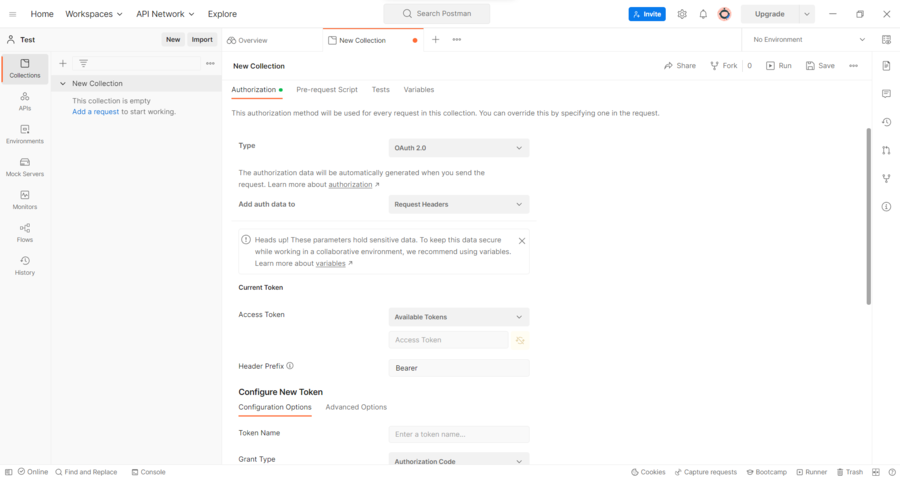

2. From the main menu after generating a collection, select the Authorization and in the Authorization Type field, select from the drop-down menu the OAuth 2.0

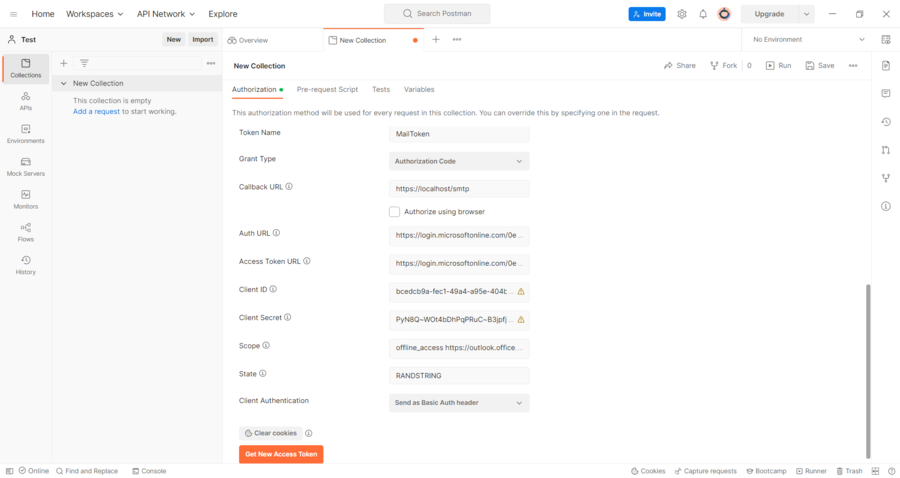

3. In the Configure New Token, click the New Token; The form is enabled to register the following fields:
| Field | Description |
|---|---|
| Grant Type | In this option you must select the Authorization code |
| Callback URL | Enter the url that the app is calling: - For the Aranda Service Management Case Creator: http://localhost - For the output server of the other Aranda products: https://localhost/smtp |
| Auth URL | Enter the authorization url |
| Access Token URL | Enter the url the token url |
| Client ID | Enter the customer ID |
| Client Secret | Enter the client’s secret value |
| Scope | Enter the required information: - For the Aranda Service Management Case Creator: offline_access https://outlook.office.com/SMTP.Send https://outlook.office.com/IMAP.AccessAsUser.All https://outlook.office.com/POP.AccessAsUser.All - For the output server of the other Aranda products: offline_access https://outlook.office.com/SMTP.Send |
| Client Authentication | In the drop-down menu use the default value (Send as Basic Auth header) |
4. Select the Get New Access Token, to generate the token (save the refresh_token for configuration).
⚐ Note:After performing the configuration, the mailer will send the respective notification emails.
