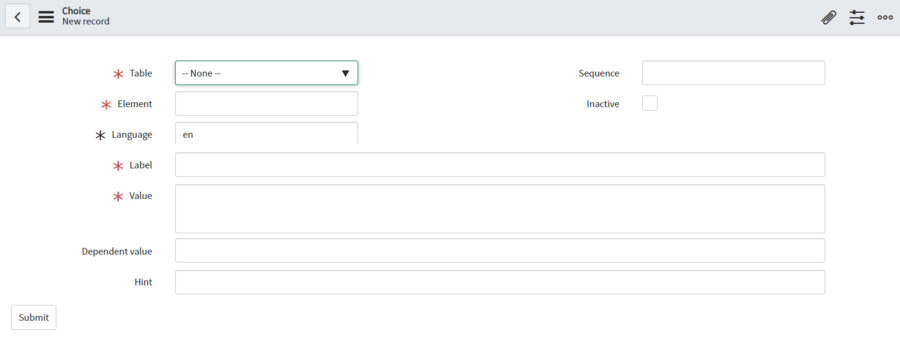

SysChoice type values are added in the “sys_choice”, the entity asks for the following attributes to perform a registration:
Mapping the class in the configuration file:
{
"searchBy": [
"name",
"value"
],
"name": "sys_choice",
"fields": [
{
"type": "string",
"name": "element",
"mappingType": "Data",
"mappingName": null,
"isRequired": true,
"classReference": null
},
{
"type": "string",
"name": "name",
"mappingType": "Data",
"mappingName": null,
"isRequired": true,
"classReference": null
},
{
"type": "string",
"name": "value",
"mappingType": "Mapper",
"mappingName": null,
"isRequired": false,
"classReference": null
},
{
"type": "string",
"name": "label",
"mappingType": "Mapper",
"mappingName": null,
"isRequired": false,
"classReference": null
}
]
}
To add these values to our settings, the “value” and “label” they are the only ones that are taken from the device; The other attributes are recorded in “dataReference”,
{
"dataReference": [
{
"name": "OperatingSystemReferenced",
"fields": [
{
"value": "os",
"fieldCMDB": "lement",
"classDevice": [
"Laptop",
"Desktop"
]
},
{
"value": "cmdb_ci_computer",
"fieldCMDB": "name",
"classDevice": [
"Laptop",
"Desktop"
]
}
]
}
],
"mapper": [
{
"name": "OperatingSystemReferenced",
"fields": [
{
"fieldDevice": "operatingSystem",
"fieldCMDB": "os"
},
{
"fieldDevice": "operatingSystem",
"fieldCMDB": "label"
}
]
}
],
"classCMDB": [
{
"searchBy": [
"object_id"
],
"name": "cmdb_ci_computer",
"fields": [
{
"type": "string",
"name": "os",
"mappingType": "SysChoice",
"mappingName": "OperatingSystemReferenced",
"isRequired": false,
"classReference": "sys_choice"
}
]
}
]
}
Where:
“fieldCMDB”: “name”: the “name” attribute, refers to the class to which “sys_choice” will be related
“fieldCMDB”: “element”: The “element” attribute will take the value of the field it refers to, because the referring field is “os” of the class “cmdb_ci_computer”, assign its value as “os”
