    Impact

    This field is part of the basic fields

    {
      "impact": [
        {
          "reference": "",
          "mappingDirection": "",
          "field": "",
          "mapping": [
            {
              "id": 0,
              "value": ""
            }
          ]
        }
      ]
    }


    Where:

    Properties Description
    field Field ID in ServiceNow
    Reference Name to which the property will be related category of the configuration file with the impact see
    mapping Relationship of values of the Aranda CMDB Impact field and the values of an equivalent field in the ServiceNow CMDB class see
    mappingDirection Represents the platform that is allowed to update the IC field see

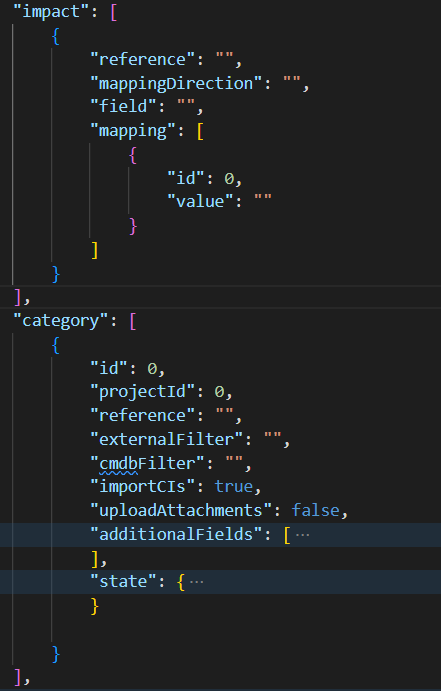

    Relationship between “impact” and “category”

    impact damn it

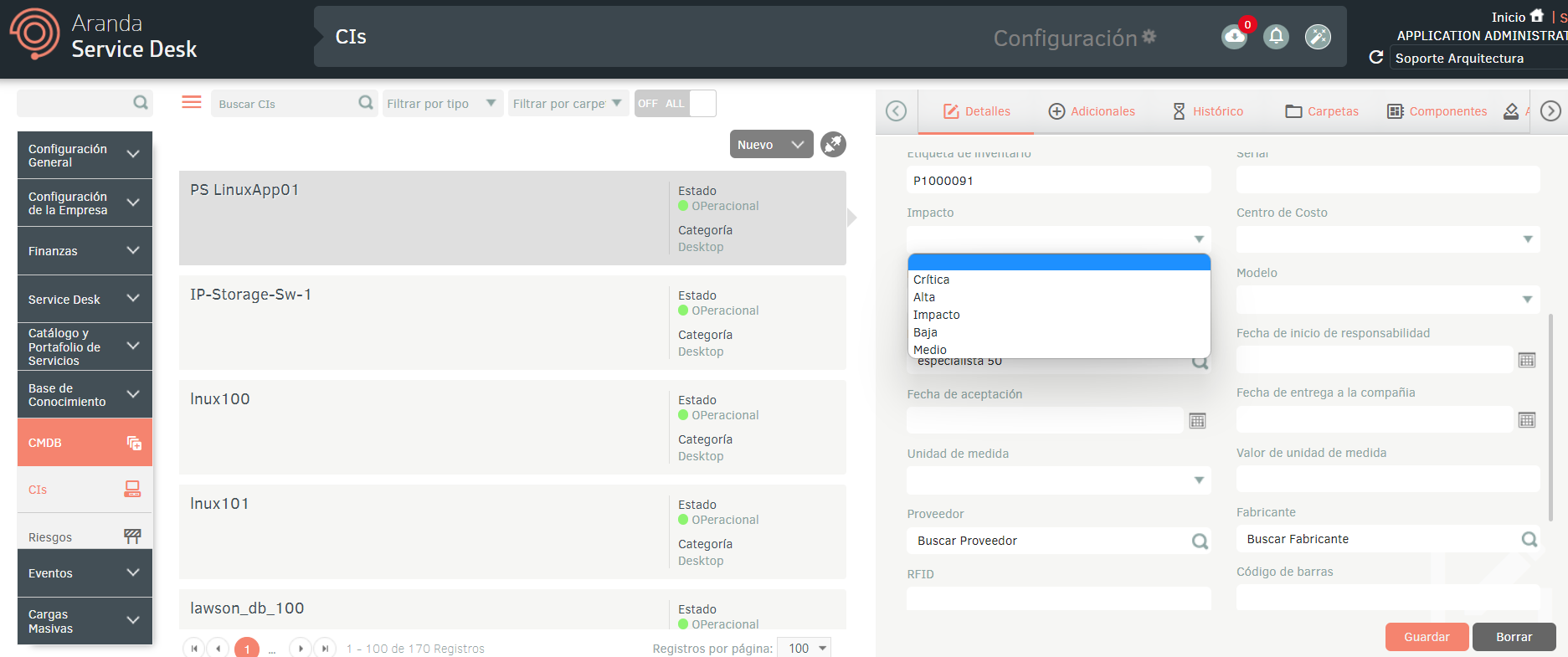

    Reference image of the creation form where the “Impact” field can be seen

    mapping

    The id and value properties that are used within the definition are described below mapping (list of values)

    {
      "id": "",
      "value": ""
    }

    Properties Description
    Id State identifier in the Aranda CMDB
    value Status identifier (sys_id or value) in the ServiceNow CMDB

    Note: If the field is type Reference the value to be paid must be a sys_id; if the field is type Choice should be the value of the list in ServiceNow ServiceNow Properties.

    Allowed values for mappingDirection

    Name Description
    Both Both platforms allow you to update the fields, this value is added by default
    Aranda Only the Aranda CMDB can update the field
    External Only the ServiceNow CMDB can update the

    Type of properties in ServiceNow

    ServiceNow class attributes can contain values that reference another entity (class), or their value can be entered by the user. Attributes that relate to other entities are designated by ServiceNow as “reference” or their value can be obtained from a “select box” as explained below:

    Sys_Choice and Reference Attributes: ServiceNow can relate its classes using two types of attributes; guy “reference” and “sys_choice”. The reference type attributes can be found as shown in the image in the type column:

    Mientras que el valor se pueda seleccionar de un “select box”, está trabajando con atributos tipo “sys_choice”, los valores contenidos se agregan a la clase “sys_choice” y se relacionan con la clase CI.
